ADSD-1410S Functionally complete 10MSPS dual sampling a/d converter delivers class leading performance in high-speed data acquisition systems

ADSD-1410S Functionally complete 10MSPS dual sampling a/d converter delivers class leading performance in high-speed data acquisition systems High-Speed Dual 14-Bit, 10MSPS Sampling A/D Converter
  • July 11, 2006

    • 14-bit resolution; 10MSPS sampling rate
    • Functionally complete; ±2.5V input range
    • No missing codes over full temperature range
    • Edge-triggered
    • ±5V supplies, 1.6 Watts
    • 76dB SNR, -83dB THD
    • Ideal for both time and frequency domain applications

  • Data Sheet : Dual Sampling A/D Converter : ADSD-1410S

  • Request Information : Dual Sampling A/D Converter : ADSD-1410S

DATEL has introduced a new fully integrated, dual sampling 10MSPS (mega sample per second), 14-bit resolution analog-to-digital-converter (A/D Converter). The ADSD-1410S complements DATEL 2MSPS A/D Converter, the ADSD-1402S.

The functionally complete ADSD-1410S is ideally suited for use in high-speed data acquisition systems that demand low-noise and high performance. Typical applications include medical instruments, radar I/Q, Digital Signal Processors, plus other instrumentation and ATE for both commercial and military applications.

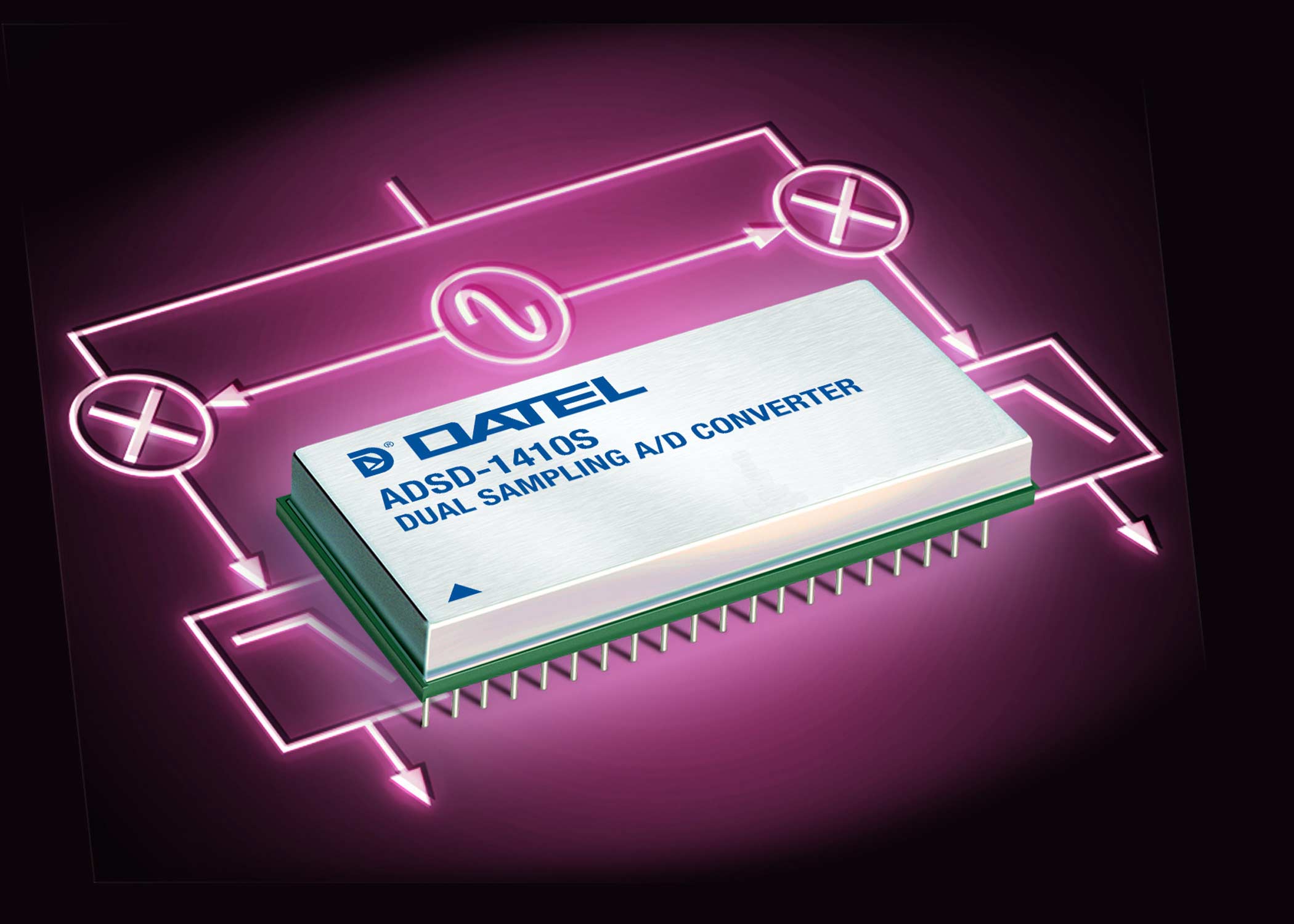

Housed in a standard 40-pin triple-wide SMT DIP, the ADSD-1410S is available in two versions. The standard product is rated for use between ambient temperatures of 0ºC and +70ºC, while the ADSD-1410S-EX is suitable for use between -55ºC and +125ºC. The module delivers 'no-missing-code' performance across its full operating temperature range.

Ideal for both time and frequency domain applications, the ADSD-1410S has an input range of ±2.5V and boasts a comprehensive list of standard features. Included are two fast-settling sample/hold amplifiers, two 14-bit A/D Converters, multiplexed output buffers, a precision reference, edge triggering, and all the necessary timing and control logic to operate from either two, or a single-start convert pulse.

The modules provide a range pin function that allows easy changes to be made to the analog input range. The digital output power supply of the ADSD-1410S is capable of directly driving either 5V or 3V logic systems.

The class leading specification of the ADSD-1410S includes a signal-to-noise ratio of 76dB and total harmonic distortion of -83dB, as well as superior integral non-linearity and differential non-linearity performance.

The modules, which require only a ±5V supply and typically consume just 1.6W, are optimized for wideband frequency domain applications and are fully FFT tested.


DATEL, Inc. is a leading supplier of High Precision Data Acquisition Components and DC to DC converters. Our leadership status in high-performance data acquisition components is unchallenged, driven in large part by our engineering expertise to develop solutions with outstanding electrical performance, small packaging, low power consumption and ease of use. These products employ five basic technologies: monolithic IC, thin-film hybrid, thick-film hybrid, SMT technologies and discrete component circuit. DATEL's DC DC converter product line includes non-isolated point-of-loads dc/dc, switching regulators as well as a complete line of industry standard brick packages (Sixteenth-Brick, Eighth-Brick, Quarter-Brick, Half-Brick and Full-Brick) and railway dc-dc converters.
